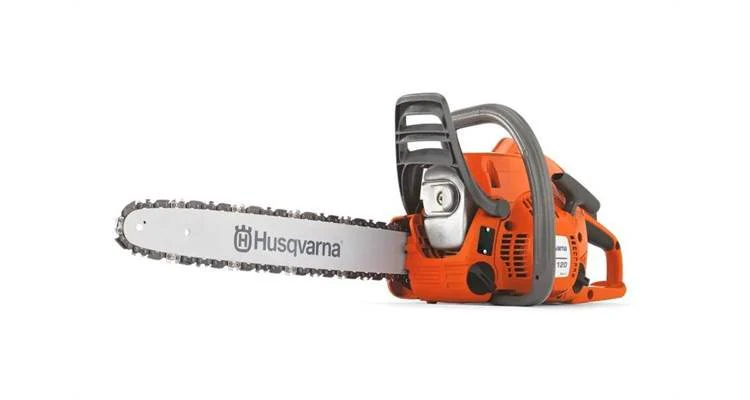

120 Chainsaw

Easy to use, all-round chainsaw for homeowners. Thanks to sufficient cutting performance the saw makes light work of cutting firewood, light felling or limbing. Features X-Torq® engine technology for low emissions and Air Injection that keeps the filter clean. Low kickback cutting equipment for increased safety.

Features

• Air Injection®: Less filter cleanings with Air Injection
• X-Torq®: X-Torq® engine cuts both emissions and fuel consumption.
• Combined choke/stop control: Intuitive, combined choke/stop control
• LowVib®: LowVib® sparing the user's arms and hands
• Air Purge: Air purge for easier cold starting
• Inertia activated chain brake: Increased safety, inertia activated chain brake

Specifications

Engine

Power output: 1.88 hp
Cylinder displacement: 38.2 cm³
Maximum power speed: 9,000 rpm
Idling speed: 3,000 rpm
Clutch engagement speed (±120): 4,250 rpm
Fuel consumption: 428 g/kWh
Fuel consumption: 1.32 lbs/h
Spark plug: Champion RCJ7Y
Electrode gap: 0.02 in
Ignition module air gap: 0.01 in
Oil pump type: Automatic

Equipment

Bar length (inch): 16 in
Recommended bar length, min-max: 14-18 in
Chain type: H37
Gauge: .050"
Pitch: 3/8" mini
Sprocket type: Spur 6

Dimensions

Weight (excl. cutting equipment): 10.7 lbs

Lubricant

Lubricant type: Husqvarna 2 stroke or equiv. at 50:1
Oil tank volume: 0.32 US pint

Sound and noise

Sound power level, guaranteed (LWA): 113 dB(A)
Sound power level, measured: 100.7 dB(A)
Sound pressure level at operators ear: 100.7 dB(A)

Vibrations

Equivalent vibration level (ahv, eq) front handle: 2.1 m/s²
Equivalent vibration level (ahv, eq) rear handle: 2.7 m/s²
