DR Horizontal-Vertical Log Splitter PRO XL34T (34-Ton)
Product Highlights
Our most powerful horizontal-vertical model. Split the biggest logs in either horizontal or vertical position. Switch configurations in seconds without tools. Ball-hitch included for highway towing at up to 45 mph.
Top of the Line Horizontal-Vertical Model

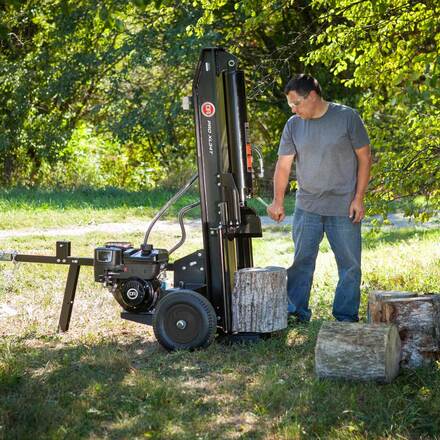

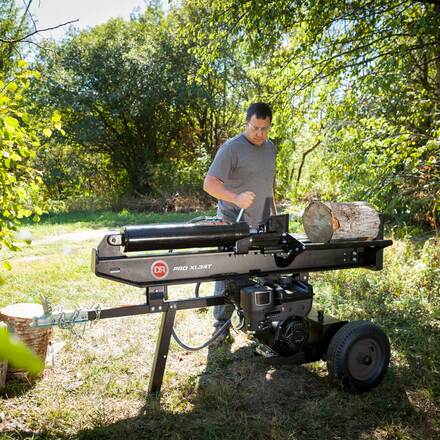

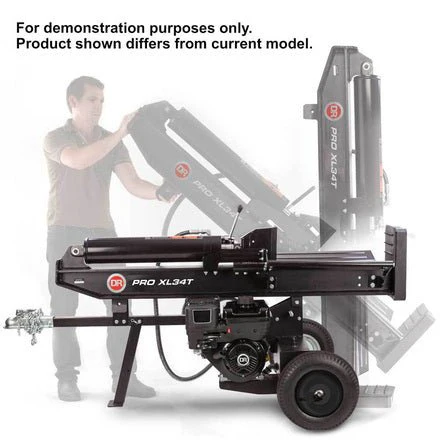

Our top of the line PRO XL34T Horizontal/Vertical splitter delivers 34 Tons of force for tackling the biggest logs. It is designed for easy transition between horizontal and vertical configurations. The horizontal mode is easiest for most splitting tasks. But when you come across an extra big round, you can save yourself a lot strain by simply pulling out a pin, easily rotating the unit into its vertical position, and splitting the log on the ground...no lifting required!
An easy-starting DR 9.2 HP engine powers the 2 stage pump (13.0 GPM), generating 3500psi of splitting force. Logs up to 30" in diameter and up to 24" long are no problem. And the PRO XL34T's 15-second cycle time makes it one of the fastest hydraulic splitters in its class.
Road-Towable

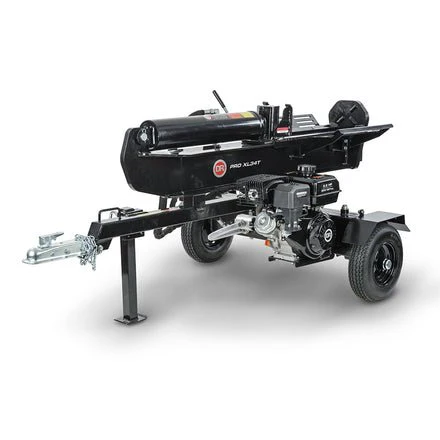

A 2" ball hitch with safety chains comes standard, allowing you to tow the unit at speeds up to 45 mph on its big 16" tires. The jackstand folds up for transport, locking into place with a simple cotter pin.
Specifications
| Dimensions | |
|---|---|
| Height | 35.4 in |
| Length | 83.6 in |
| Wedge Height | 7.94 in |
| Wedge Width | 1-3" |
| Weight | 549 lbs |
| Width | 40.6 in |
| Engine | |
|---|---|
| Horsepower | 9.2 HP |
| Make | DR |
| Number Of Cylinders | 1 |
| Fuel_System | |
|---|---|
| Fuel Capacity | 1.6 gals |
| Fuel Type | Gas |
| General | |
|---|---|
| Assembly | Some assembly required |
| Hydraulics | |
|---|---|
| Cylinder Size | 5" bore, 23.65" stroke |
| Hydraulic Component Rating | 3500 psi |
| Pump | 2 Stage, 13.0 gpm |
| Reservoir | 5 gal |
| Wheels_Tires | |
|---|---|
| Number of Tires | 2 |
| Tire Size | 16" |
| Warranty | |
|---|---|
| Engine Warranty | 2 years residential, 1 year commercial |
| Machine Warranty | 2 years residential, 90 days commercial |
| Towing | |
|---|---|
| Hitch Type | 2" Ball |
| Max Highway Speed | 45 mph |
| Towable | Yes |
| Splitting | |
|---|---|
| Average Cycle Time | 16 secs |
| Max Log Diameter | 30 in |
| Max Log Length | 25 in |
| Splitting Force | 34 tons |
