DR Leaf and Lawn Vacuum PILOT XT (Direct Bagging)

Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
Product image 6
Product image 7

DR Leaf and Lawn Vacuum PILOT XT (Direct Bagging)

Product Highlights

The PILOT XT uses DR’s unique EZ Bagger Leaf Collection System to fill standard, disposable leaf bags so they are ready for curbside pickup (or transport to the compost pile). The onboard caddy lets you carry extra bags for replacing as you go.

Unique Direct Bagging System!

The DR PILOT XT Leaf and Lawn Vac is a powered leaf collector designed to work with standard, disposable leaf bags. You can collect up to 50 pounds of mulched leaves in a single bag and, when it's full, it’s ready for curbside pickup or the compost pile.

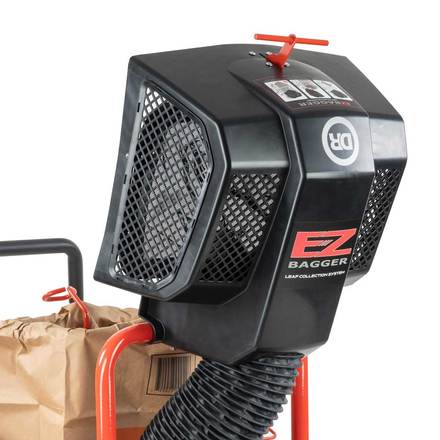

The DR's unique EZ Bagger Leaf Collection System makes operation easy. Just unlatch the EZ Bagger's cover, place an empty bag on the fold-down platform, crimp the bag around the support ring, and latch the EZ Bagger shut. It’s a simple, fast, and labor-saving alternative to the drudgery of raking and bagging by hand.

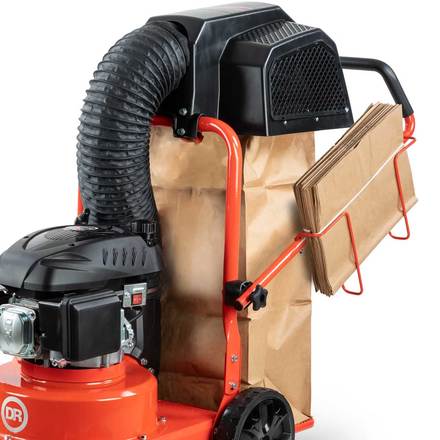

The included paper bag caddie carries 10 leaf bags, and you can add an optional second carrier to tote as many as 20 empty bags.

PILOT XT Leaf and Lawn Vac:

  • 4.3 HP (173 cc) DR OHV Engine with recoil start
  • Capacity: 3 cu. ft. (50 lbs)
  • Uses standard paper leaf bags
  • Bag caddie included (holds 10)
  • Intake height: 1” to 4”
  • Never flat wheels, 8” x 2” (front), 10” x 2” (rear)
  • All-steel impeller with a Lifetime Warranty
  • Weight: 105 lbs

Warranty:

  • Engine: 2 years residential
  • Machine: 2 years residential

Specifications

Dimensions
Shipping Weight 150 lbs
Weight 105 lbs.
Shipping Dimensions 52" x 26" x 42"
Engine
Air Filter Dual-Element
Displacement 173cc
Engine Type OVH RV170
Ft Lbs Torque 6.6 ft-lb
Horsepower 4.3
Lubrication Splash
Number Of Cylinders One (cast-iron sleeve)
Oil Capacity .5 Liters
Oil Type SAE 30W HD
Starting Type Manual
Fuel_System
Fuel Capacity 1.0 Liter
Hauling
Hauling Capacity 3 cu. ft.
Weight Capacity 50 lbs.
Wheels_Tires
Front Tire Size 8" x 2"
Number of Tires 4
Rear Tire Size 10" x 2"
Tread Never Flat Plastic Turf
General
Assembly Yes
Warranty
Engine Warranty 2 Year Residential, 90 Day Commercial
Machine Warranty 2 Year Residential, 90 Day Commercial
$420.00

Original: $1,199.99

-65%
DR Leaf and Lawn Vacuum PILOT XT (Direct Bagging)

$1,199.99

$420.00
