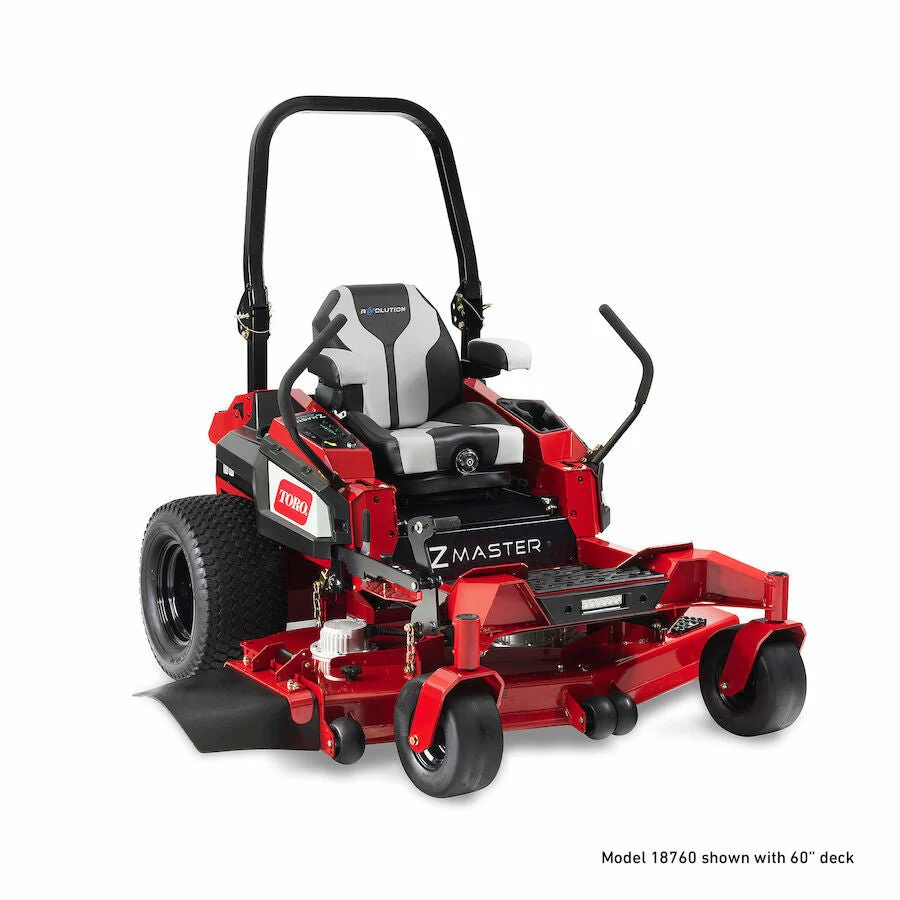

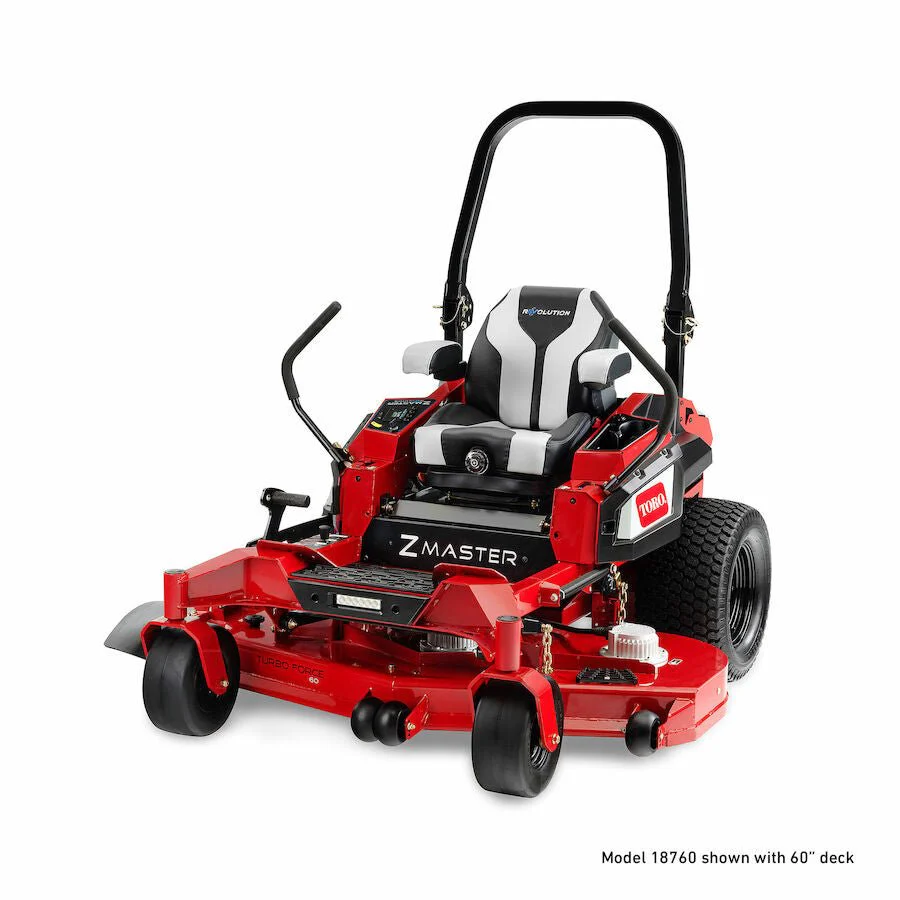

Toro Z Master Revolution Series 48" Commercial Zero Turn Lawn Mower (18748)

The future of lawn care and your business is here. The new Revolution Series Z Master is built on the same proven Z Master chassis and TURBO FORCE® deck that you’ve trusted for years but with a quieter, eco-friendlier design to deliver lower overall cost over the machine’s lifetime. Featuring our Horizon Technologies, the Revolution Series provides you with a smarter, more connected fleet that makes your operation more efficient than ever before. With all-day runtime from the Toro developed HyperCell battery system, you can expect to power through your day, every day.

• Optimize machine feel and response, including speed control, with patent-pending software controls.
• Automatically pairs with Horizon360 connected technology to get remote insights including battery life and charging status.
• Toro's Hypercell Battery is designed to operate with the machinery and meet landscaper needs.
• Optimize run time and quality of cut with the adjustable deck rake.

SPECIFICATIONS

Battery Capacity	23.4kWh
Battery Charge Time (hours)	6
Battery Power	Toro HyperCell
Battery Run Time (Hours)	4.5 - 7+ hours
Blade Design	0.204 in. / 0.518 cm
Blade Tip Speed	Adjustable
Brake System	Integrated in Transmission Automatic
CARB Compliant	CARB Compliant
Caster Tires	13 in. x 6.5 in. - 6 in. (33 cm x 16.5 cm - 15.2 cm) Flat-Free Semi-Pneumatic, 13" x 6.5" - 6" (33 x 16.5 – 15.2 cm) Flat-free semi-pneumatic
Charge Type	3.3kW 240V Standard; 1.2KW 120V Optional
Comfort Platform	Standard Suspension
Cutting Width	48 in. / 122 cm
Deck Design	48" (121.9 cm) 7-Gauge High-Strength Steel TURBO FORCE®
Deck Material	7 Gauge High-Strength Steel
Discharge Chute	Rubber
Drive Tires	Super Turf 24 in. x 9.5 in. x 12 in. (61 cm x 24.1 cm - 30.5 cm)
Foot Operated Height of Cut	Standard
Forward Ground/Transport Speed	Up to 12.0 mph / 19.3 kph
Fuel Type	Battery
Height of Cut	1.5 - 5.5 in. / 3.8 - 14.0 cm
Hour Meter	Standard Hour Meter
Ignition	Electric
Lighting	LED Headlights
Motor	Mid-Mount Commercial High Torque
Mower Type	Zero Turn Mower
Number of Batteries Included	10
Product Features	Battery Powered, CARB Compliant, Hour Meter
Product Use	Commercial
Roll-Over Protection (ROPS)	Folding; Standard
Seat	Handcrafted Deluxe Suspension Seat with Arm Rests
Spindle Bearings	Maintenance-free
Spindle Housing	9 in / 22.9 cm Diameter Die-Cast Aluminum w/ Blade Retainer
Start Type	Electric
Transmission	Planetary Gearset



FEATURES

Patent-Pending Software Controls

Optimize machine feel and response, including speed control, with patent-pending software controls.

Horizon360® Compatible

Automatically pairs with Horizon360 connected technology to get remote insights including battery life and charging status.

All Day Runtime

Toro's Hypercell Battery is designed to operate with the machinery and meet landscaper needs.

Deck Rake Adjustment

Optimize run time and quality of cut with the adjustable deck rake.
