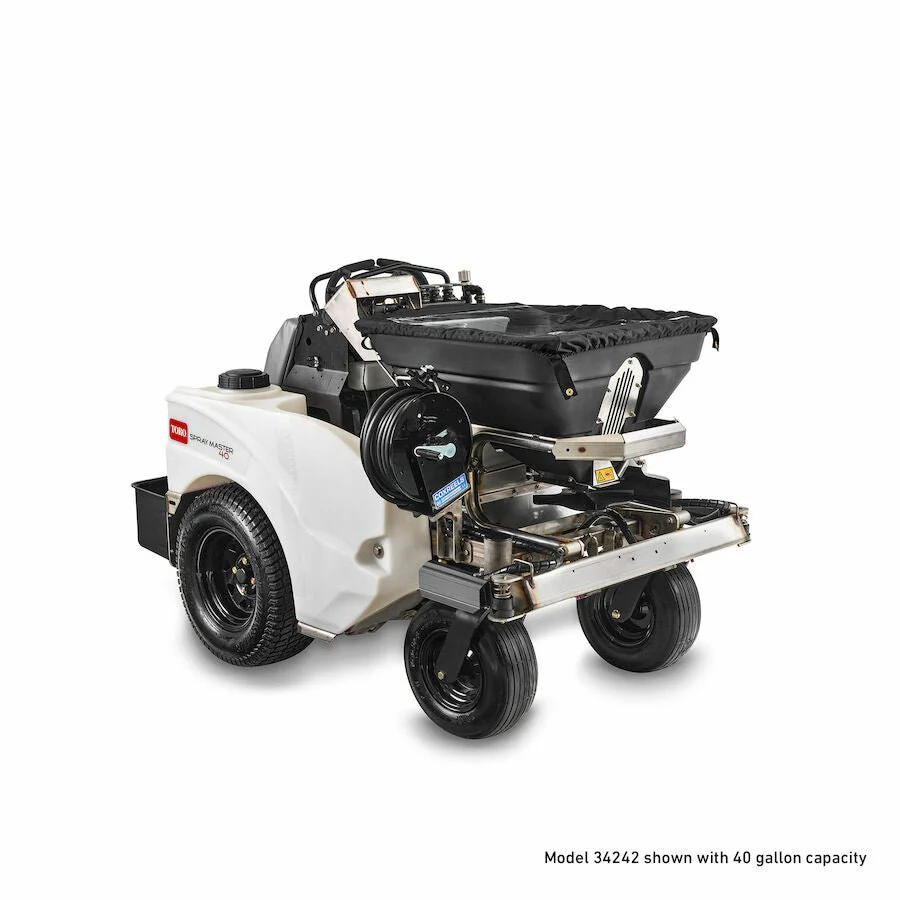

Stand-On 24 Gallon SprayMaster

Product Highlights

Uneven applications cost you valuable time and money, not to mention unhappy clients. The Stand-On 60 Gallon SprayMaster And as a Toro owner, you'll have access to nearly 3,000 servicing dealers across the U.S. and Canada ready to assist you. Count on it.

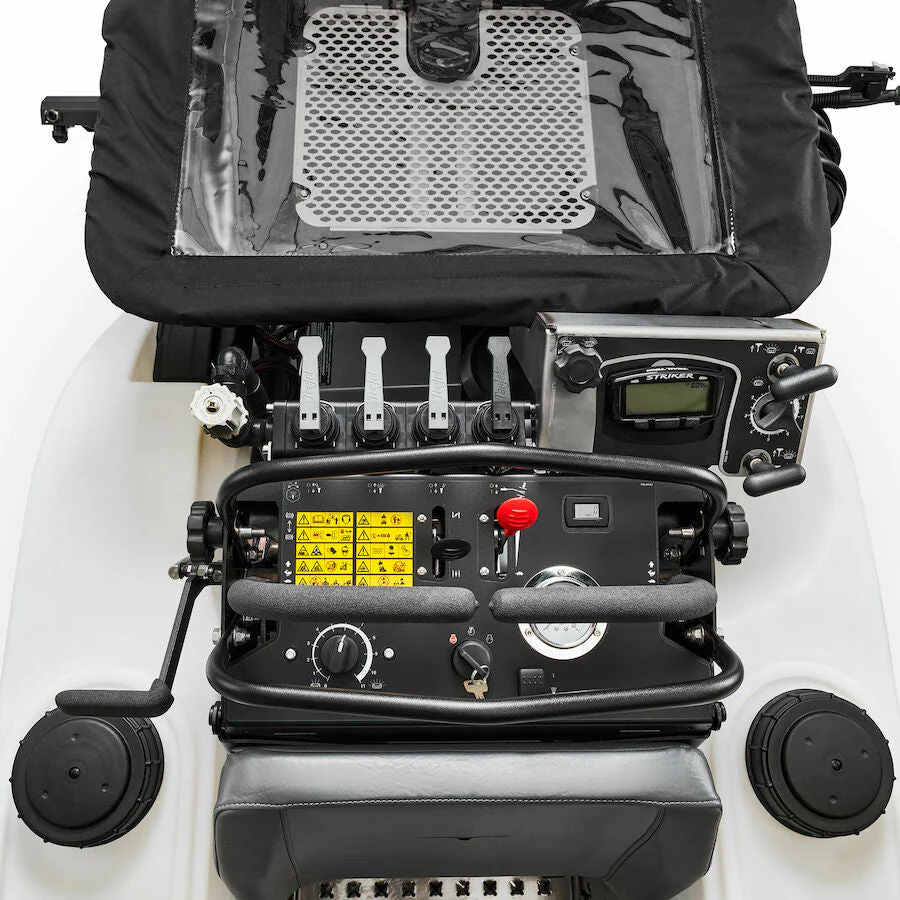

• The control panel allows the operator to conveniently make adjustments for a precise application.
• The 36" wide compact design allows for exceptional maneuverability.
• Reduce operator fatigue with rubber compression in the foot plate and a larger padded knee bolster.

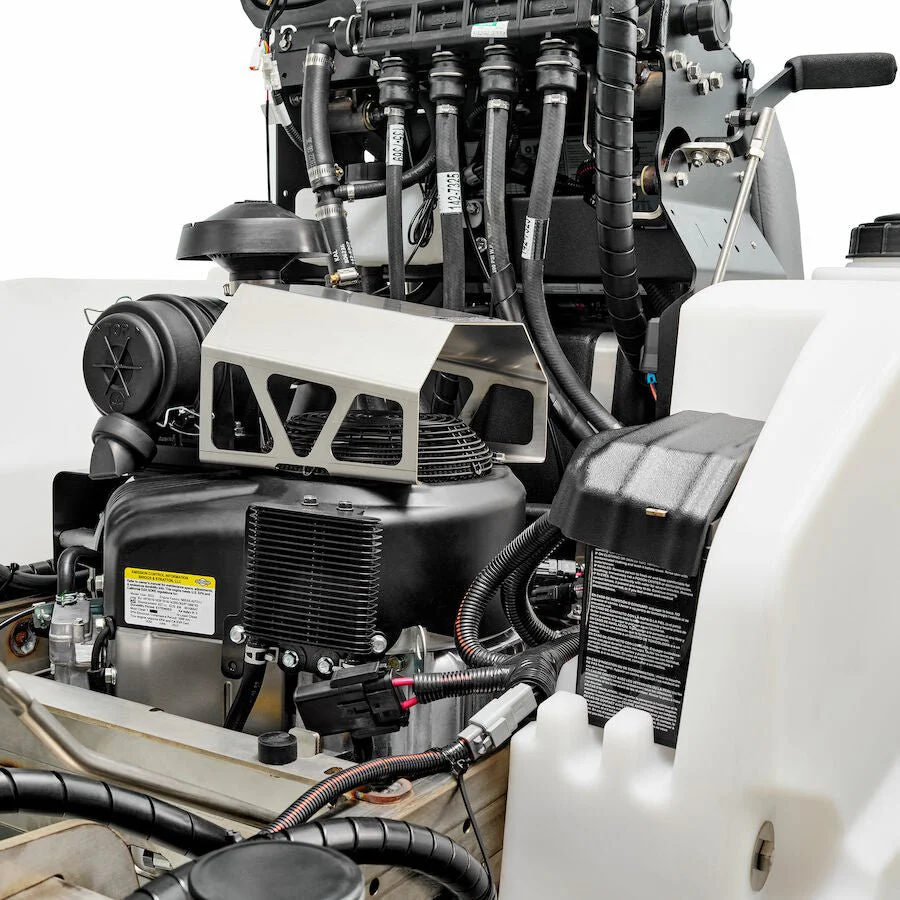

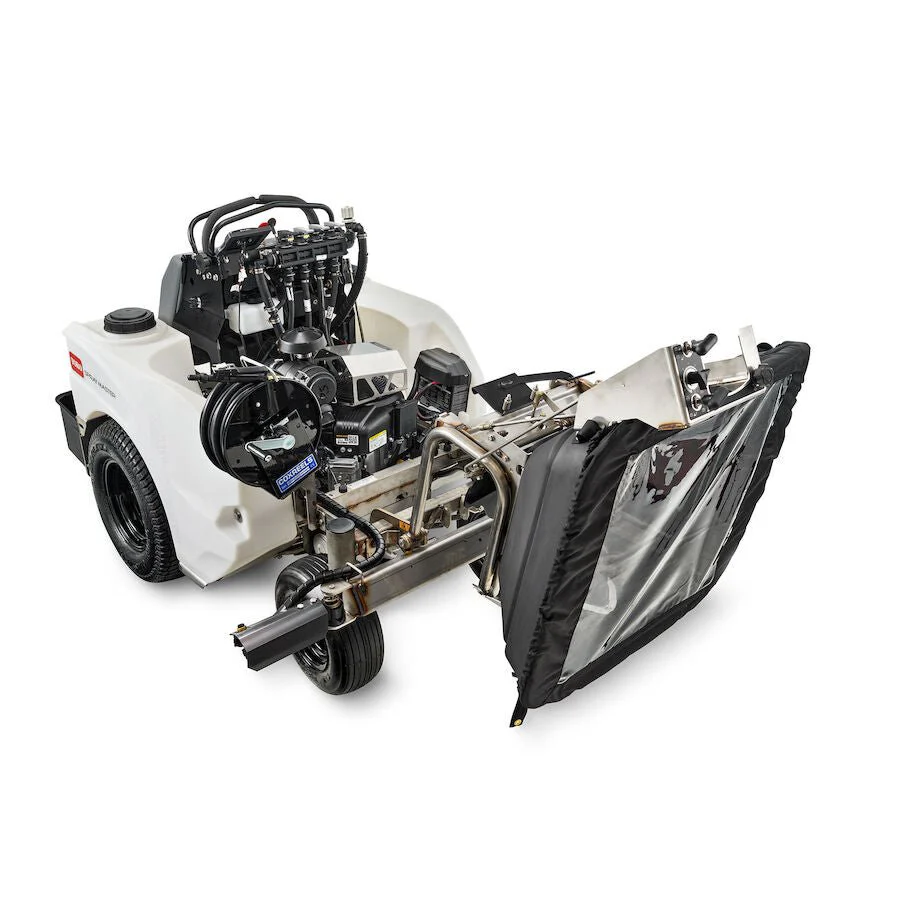

• The flip up hopper provides easy access to the engine and battery for maintenance.
• Ride in style with improved hopper cover and knee bolster featuring Toro's bullhorn logo.
• The new design increases the balance and stability resulting in less turf tear up.
• Easy spot spraying with larger foot switch so the operator doesn't accidentally hit it. Operator can move the location to three different spots for convenience.

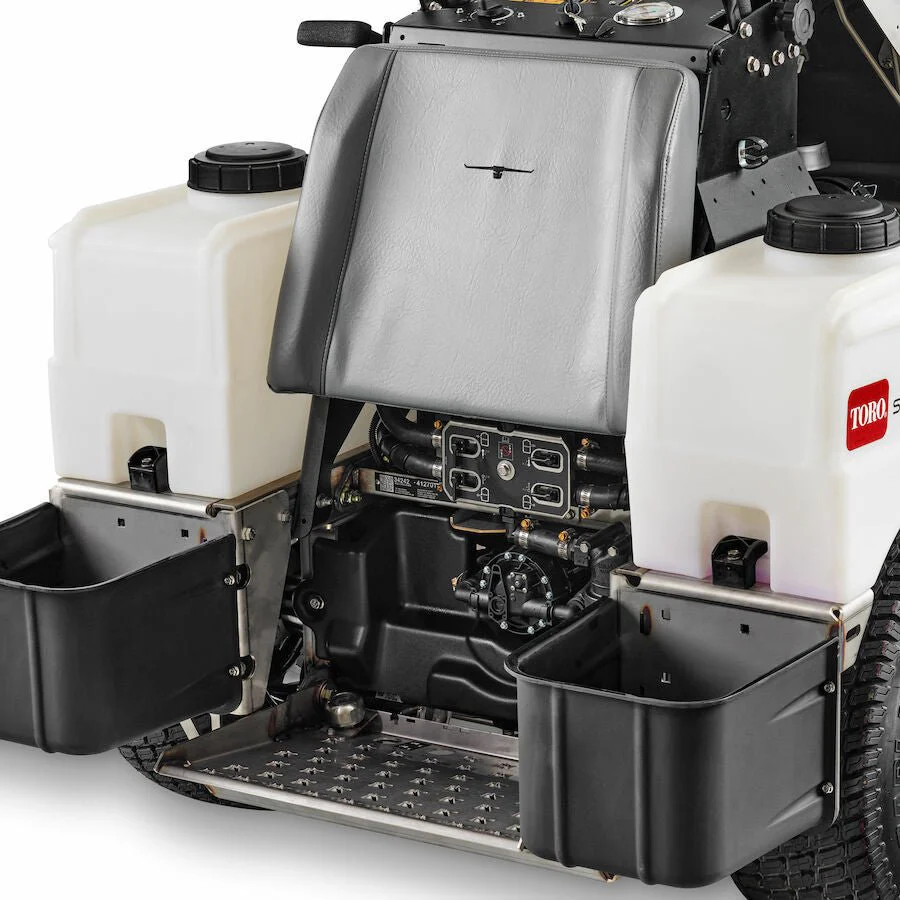

• Carry up to 100 lbs. of additional fertilizer with 2 fertilizer trays (50 lbs. per tray) to get the job done faster with less re-fill trips.

Specifications

Drive System	HYDRO
Engine	Vanguard 16 hp
Engine Brand	Briggs and Stratton
Engine Displacement (cc)	479 cc
Engine Horsepower	16.0 hp
Frame	Stainless Steel
Fuel Capacity	5 gal. / 18.9 L / 20 Qt.
Fuel Type	Gasoline
Ground Speed	Up to 7.0 mph / 11.2 kph
Hopper Capacity	150 lbs
Product Type	Spreader/Sprayer
Recommended Oil Type	10W50
Spray Capacity (gallons)	24
Spray Wand	Standard, hand-held spray wand for spot spraying
Spray Width	2 ft, 4 ft, 6 ft or 8 ft / 0.6 m, 1.2 m, 1.8 m or 2.4 m
Spreader Hopper Capacity (lbs)	150
Spreading Width	Up to 25 ft
Start Type	Electric
Tires	Drive Tires 22 in x 8.5 in - 12 in / 55.8 cm x 21.5 cm - 30.4 cm; & Ribbed Front Tires 15 in x 5 in - 6 in / 38.1 cm x 12.7 cm x 15.2 cm
Transaxle	HydroGear ZT3400
