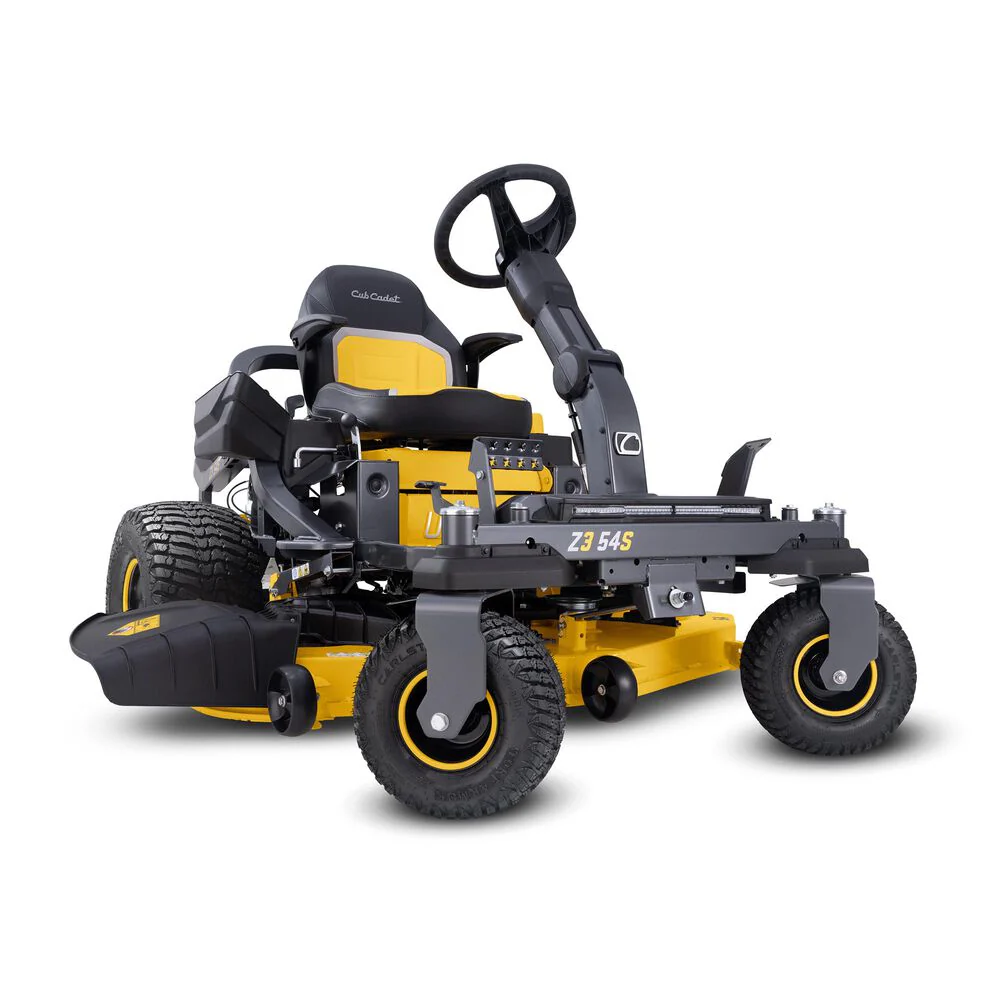

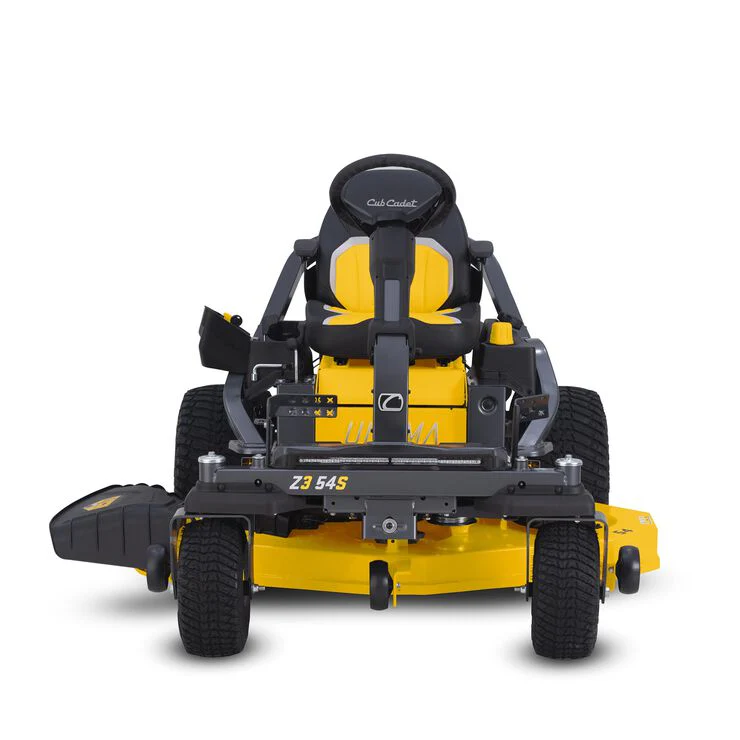

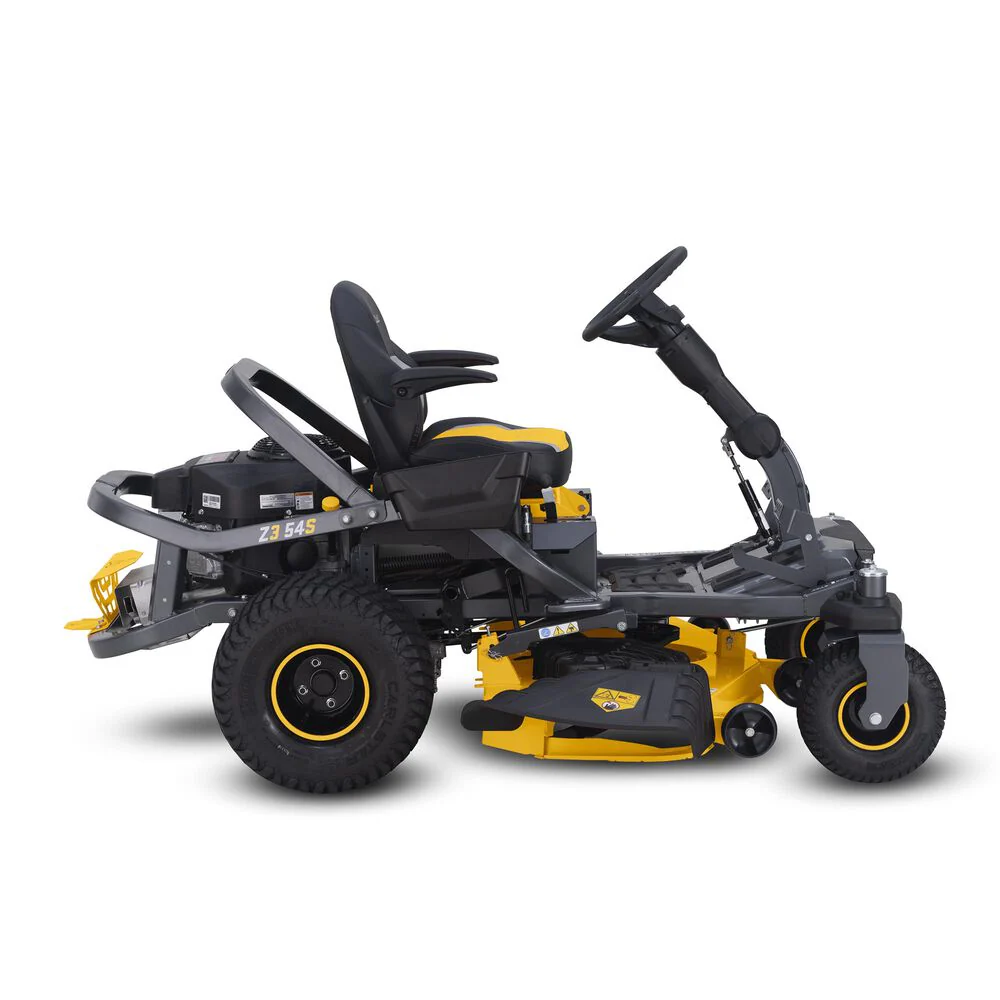

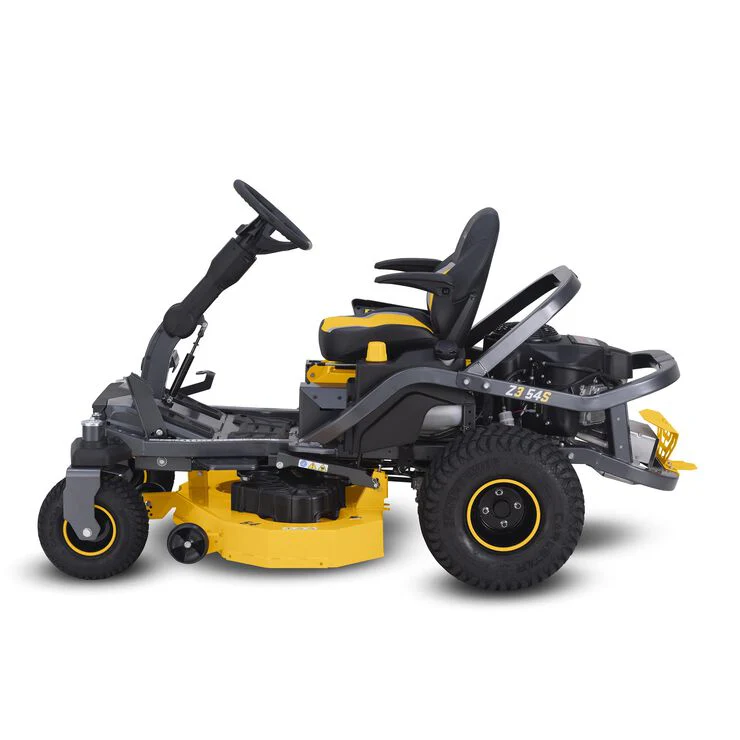

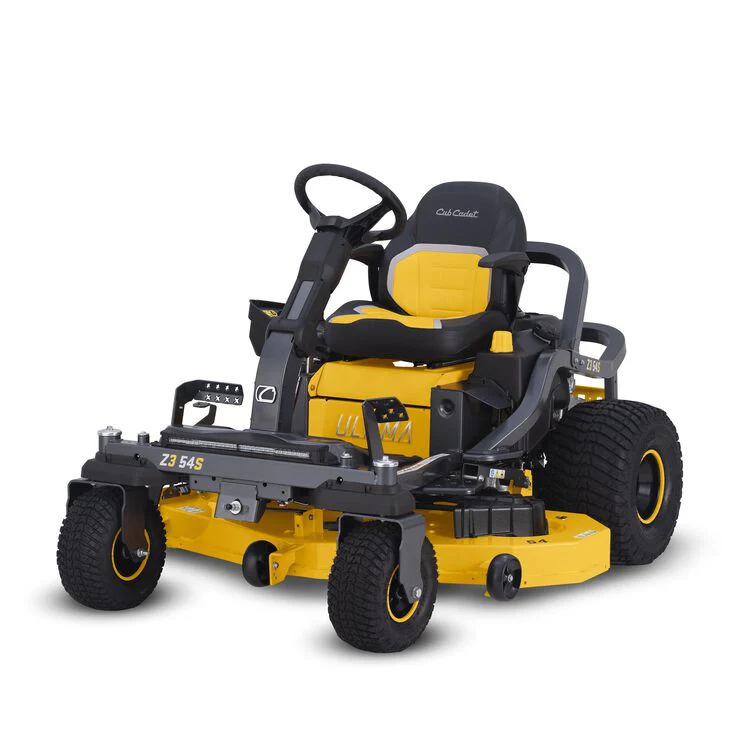

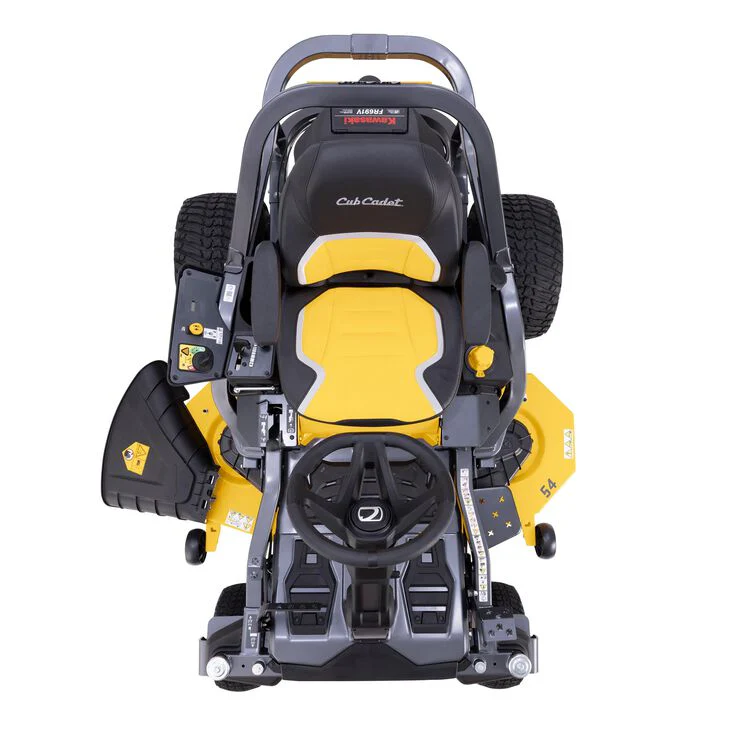

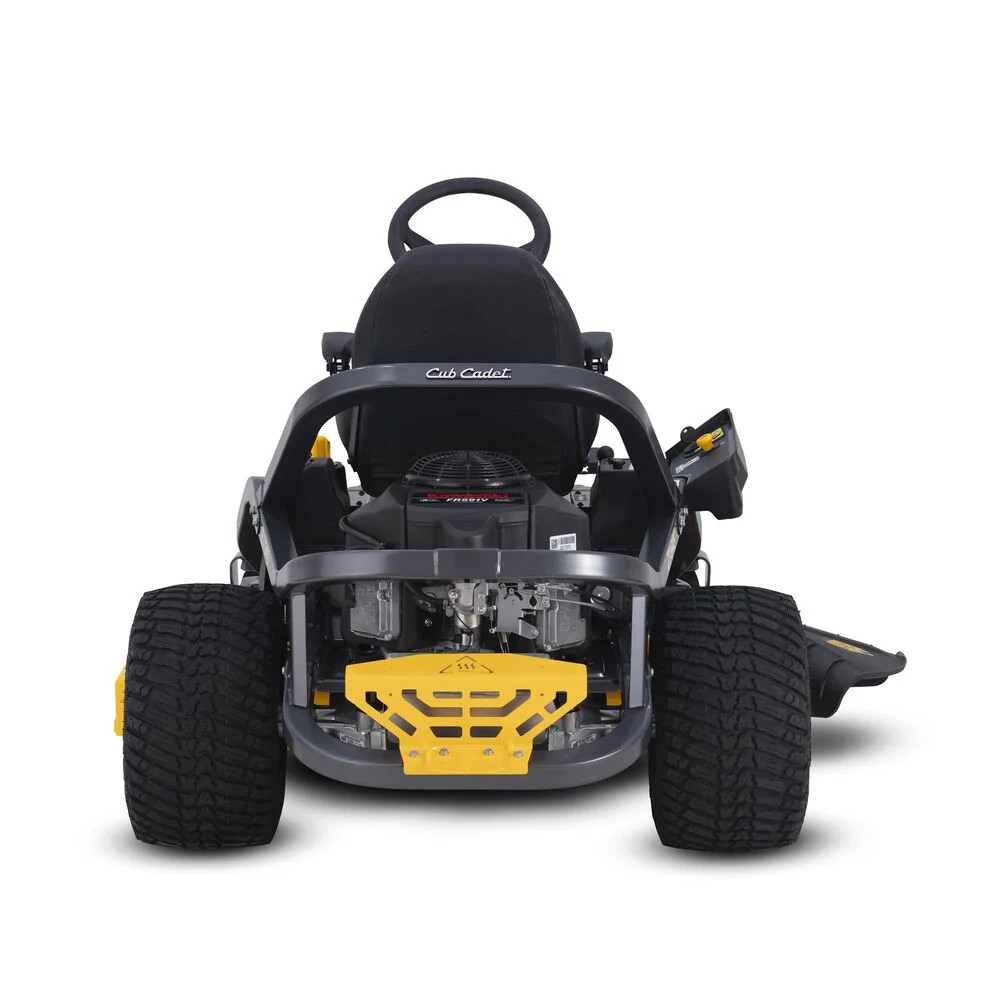

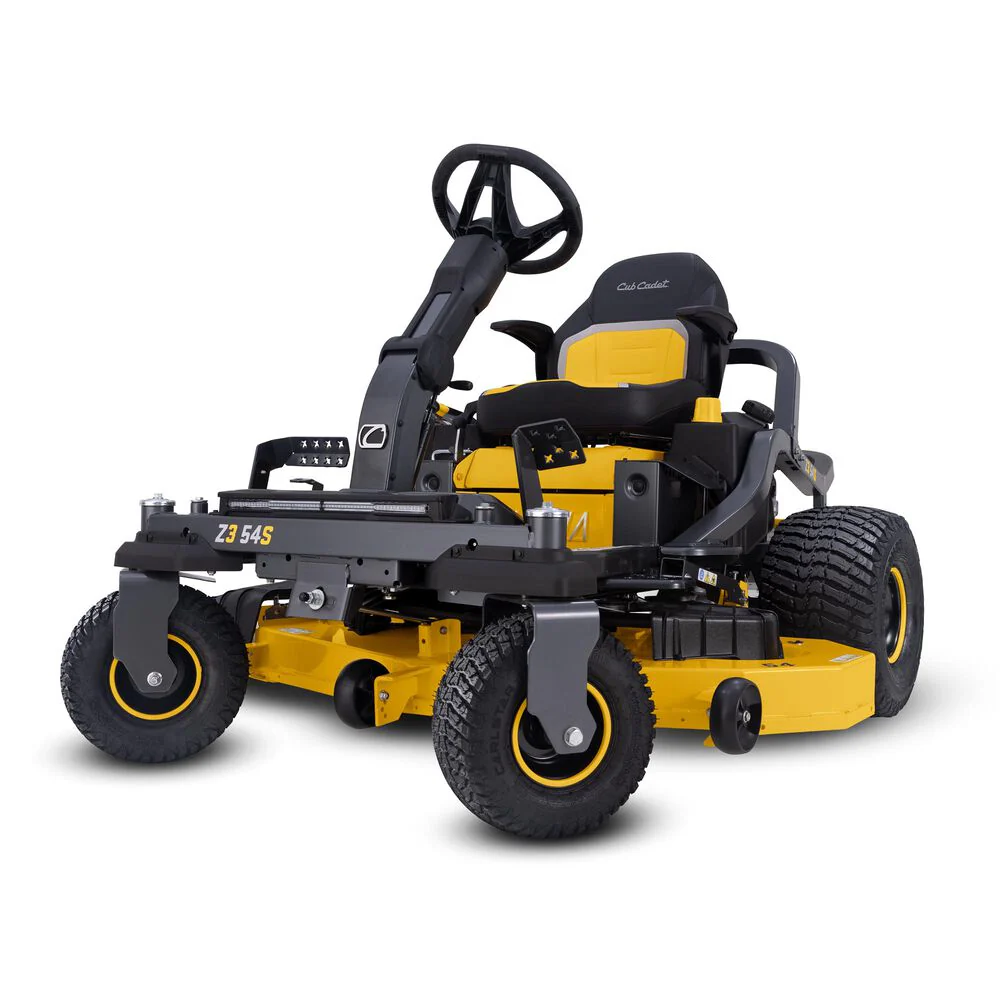

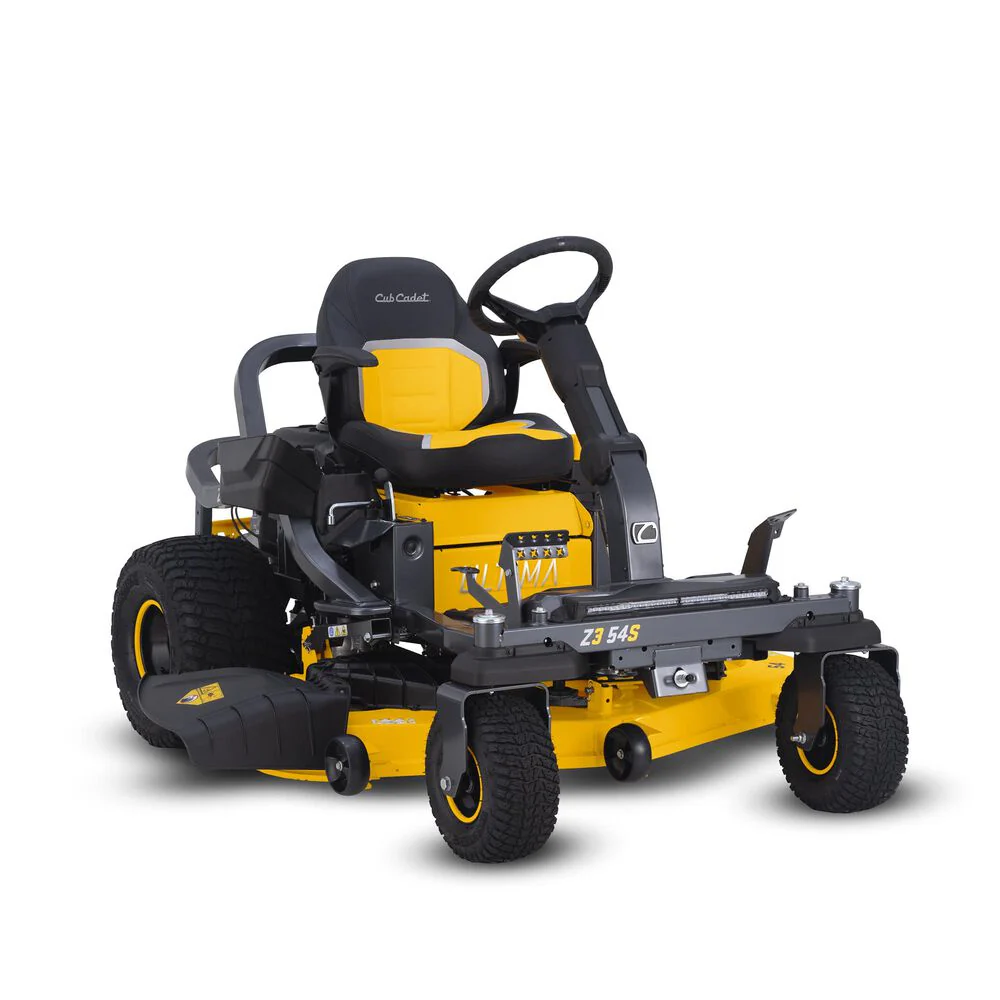

Ultima Series Z3 54S (54" Zero Turn Mower w/Steering Wheel)
Product Highlights
Step up to the advanced Ultima Series™, the Cub Cadet® Ultima Series Z3 54S 54-in. 23 HP* Zero-Turn Lawn Mower with AeroForce™ Fabricated Deck and Synchro-Steer™ Technology is engineered for precision, control, and stability on challenging terrain. Don’t back down from hills and slopes up to 20-degrees**. Synchro-Steer™ technology offers 4-wheel control and provides stability for straight-line mowing on hillsides. Experience uncompromised performance and durable strength, designed to help you mow efficiently and maintain control.
- Experience the ultimate in control even when facing slopes and hills up to 20-degrees with Cub Cadet® steering wheel zero-turns equipped with patented Synchro-Steer™ technology.
- The Ultimate Mowing Experience from Cub Cadet® is powered by a reliable Kawasaki® Engine. A 23 HP* Kawasaki® twin-cylinder OHV engine delivers high-performance to tackle your yard.
- Dual hydrostatic transmissions allow for quick and effortless 7.5 MPH forward (3.5 MPH reverse) ground speeds that leaves your lawn with a professional-quality finish
- A 11-gauge steel welded, heavy-duty fabricated AeroForce™ Max deck with side, top and leading-edge reinforcements equips you with the right amount of strength for consistent cut quality.
Specifications
Engine
- Engine Brand: Kawasaki®
- Engine Model: FR Series
- Engine Model Number: 691V
- Engine Displacement: 726cc
- Engine Output: 23HP
- Starter Type: Electric
- Fuel Tank Capacity: 3.5 gal. US (13.25 L)
- Cylinders: Twin
- Engine Start: Ignition Key
- Engine Oil Capacity: 2.1 qt US ( 2 L)
- Lubrication: Fully pressurized
- Charging System: 12 amp regulated
- Fuel Gauge: No
- Governor: Mechanical
- Choke: Separate Choke
- Air Filter: Single element
- Oil Filter: Yes
- Fuel Delivery: Carburetor
Battery
- Battery: 230 CCA
- Battery Type: Lead Acid
- Battery Voltage: 12V
Drive System
- Transmission: Hydro-Gear ZT 2800
- Forward Speed: 7 MPH / 11.3 km/h
- Reverse Speed: 3.5 MPH / 5.6 km/h
- Drive System: Hydrostatic
Cutting Deck
- Deck Cutting Width: 54 in
- Deck Wash: No
- Deck Material: 11-gauge steel
- Deck Engagement (PTO): Electric
- Deck Construction: Reinforced Fabricated
- Blade(s): Three
- Deck Lift: Foot pedal with Dial Adjust
- Cutting Height Range: 1'' - 4.5''
- Anti-Scalping: Three gauge wheels
- Deck Positions: 15
Chassis
- Frame: 2'' x 2'' tubular steel
- Turning Radius: 0°
- ROPS: No
- Rear Tow Hitch: Yes
- Corrosion Protection: Yes
- Front Caster Yokes: 1/4" Steel
Controls
- Cruise Control: No
- Brakes: Disc
- Steering Control: Steering Wheel
Comfort
- Seat Type: 20" Cut-and-Sew with Head Bolster
- Armrests: Yes
- Seat Adjustment: Lever
- Front Caster Suspension: No
Wheels
- Rear Tires: 20”x 12”-8"
- Front Tires: 13"x 6.5"-6"
- Tire Tread: Turf Armor
Specifications
- Series: Ultima Series™ ZS
Additional Specifications
- Hour Meter: Yes
- Mulch Kit: Available separately
- Headlight(s): LED Lightbar
- Cup Holder: Yes
- Operator Presence System: Yes
- Parking Brake: Hand Lever
- Model Number: 17CIGGY3A10
Warranty
- Residential Warranty: 3-year unlimited hours
- Frame Warranty: Lifetime Limited
- Deck Shell Warranty: Lifetime Limited
- Commercial Warranty: No
Disclaimers
- Specifications: Specifications subject to change without notice and without incurring obligation. Products depicted on website and other advertisements are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments, safety features and non-functional appearance from. See other general disclaimers at the bottom of our website.
- Horsepower: As required by Kawasaki, horsepower tested in accordance with SAE J1995 and rated in accordance with SAE J2723 and certified by SAE International.
- LED Lightbar: Front LED Light Bar vs. Cub Cadet® Classic Twin LED Headlights 625-05041, measured in total lumens.
- Synchro-Steer™: *Synchro-Steer™ available on Cub Cadet Ultima Series™ ZS models
$2,029.65
Original: $5,799.00
-65%Ultima Series Z3 54S (54" Zero Turn Mower w/Steering Wheel)—
$5,799.00
$2,029.65Product Information
