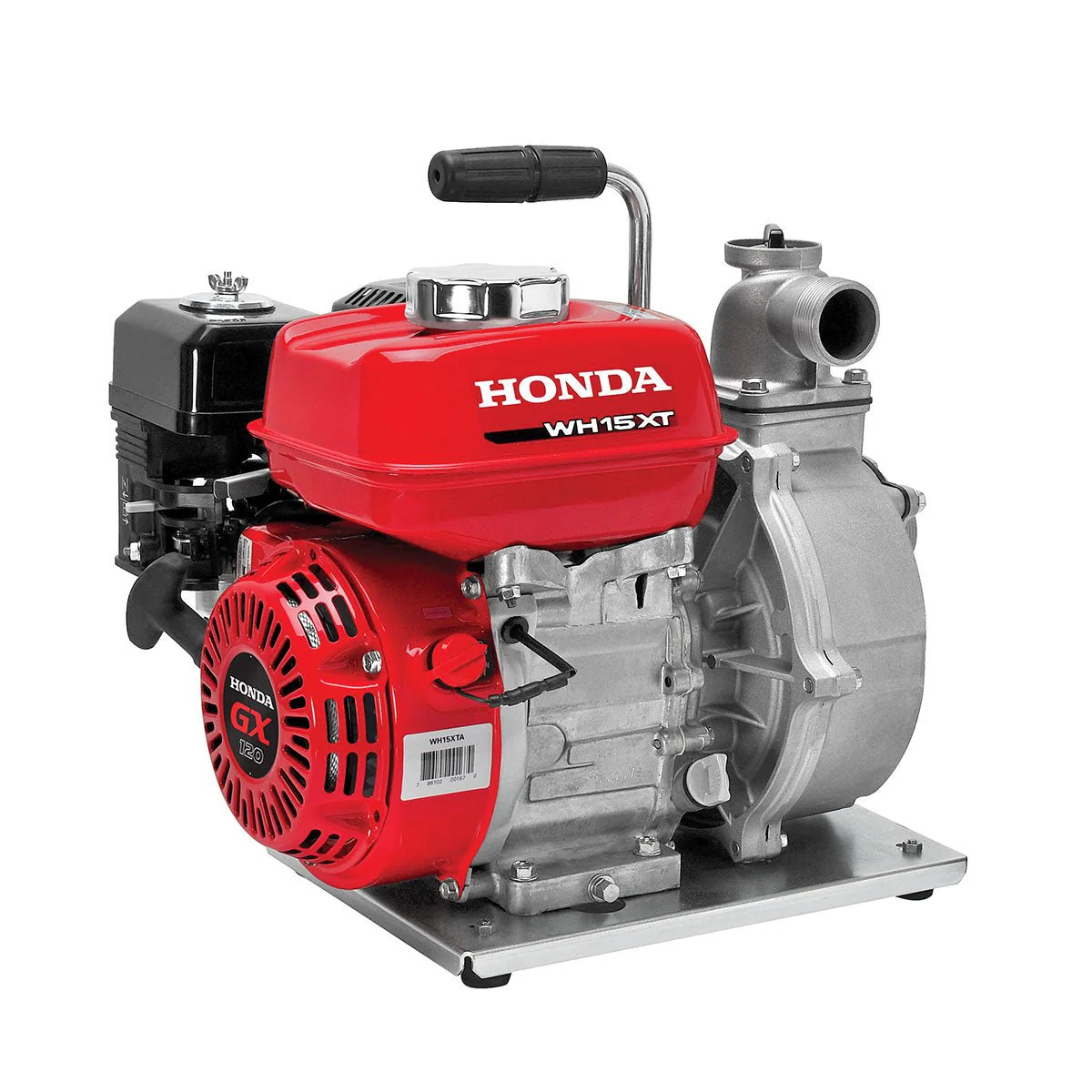

Product image 1

WH15

Product Highlights

1 1/2" high pressure water pump

  • 98 gal./min. capacity
  • 57 psi max.
  • Cast iron volute and impeller

Features

High pressure - ideal for sprinklers or nozzles
High pressure - ideal for sprinklers or nozzles

With a maximum pressure of 57 psi, the WH15 is designed for a variety of applications requiring high pressure.

Easy starting Honda OHV commercial engine
Easy starting Honda OHV commercial engine

The durable Honda GX series commercial grade engine is easy starting and provides ample power for the toughest conditions.


98 gal./min. capacity



Cast iron volute and impeller
Cast iron volute and impeller

The rigid-mount cast iron volute reduces case wear, increasing the life of the pump.

Easy carry handle
Easy carry handle

The WH15 is easy to transport wherever you need it.


Lightweight aluminum case



Specifications

Engine: GX120
Displacement: 118cc
Bore and stroke: 2.4" x 1.7"
Compression Ratio: 8.5:1
Oil Alert: N/A
Pump Type: High Pressure, Centrifugal, Self-priming
Volute: Rigid Mounted Cast Iron
Impeller: Cast Iron
Mechanical Seal (Pump case / impeller): Carbon/Ceramic
Priming time: 80 sec. at 16.4 ft.
Drive system: Direct
Discharge capacity: 98 gals./min.
Suction port diameter: 1.5" NPT
Discharge port diameter: 1.5" NPT
Total head lift: 131 ft.
Suction head lift: 26 ft.
Maximum pressure: 57 psi
Solids handling: N/A
Dimensions (LxWxH):16.3" x 14.2" x 16.3"
Dry weight: 49 lbs.
Fuel Capacity: 0.53 gal
Run Time @ Max Discharge: 1.5 hr
Strainer Part #78325-YB7-020
Residential Warranty: 24 months
Commercial Warranty: 12 months
WARNING: California Prop 65 Information
$244.65

Original: $699.00

-65%
WH15

$699.00

$244.65
